We’ve just introduced our new S185 touch screen monitor for boat and it’s the ideal display for boat navigation and charting systems using our Aqua PC

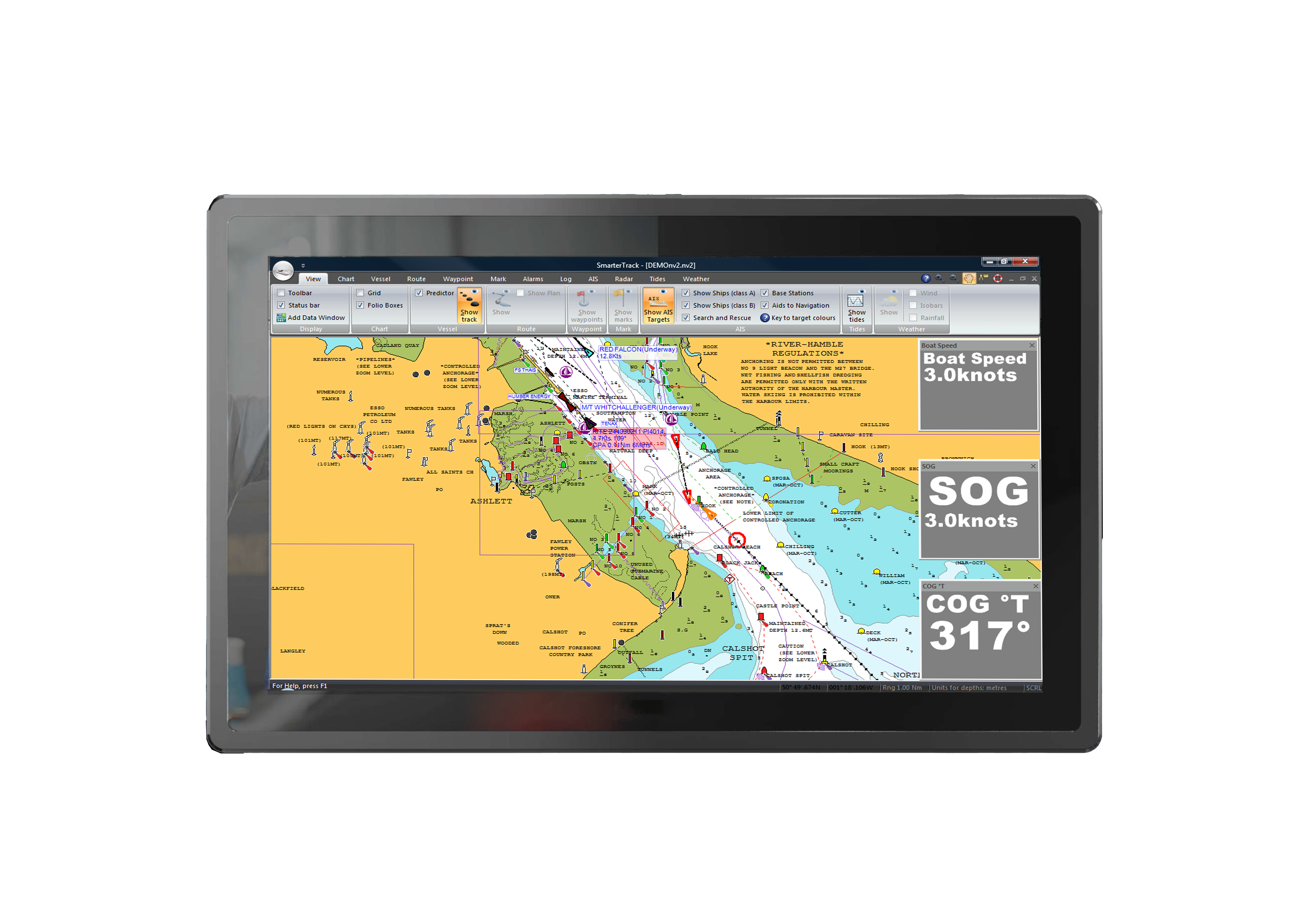

Hi-Brightness LCD Touch Screen Monitor for boat
It’s a hi-brightness (1000 nits), great value, day/sunlight viewing LCD touch screen monitor and the large 18.5” screen supports 1920×1080 resolution for true HD navigation displays.

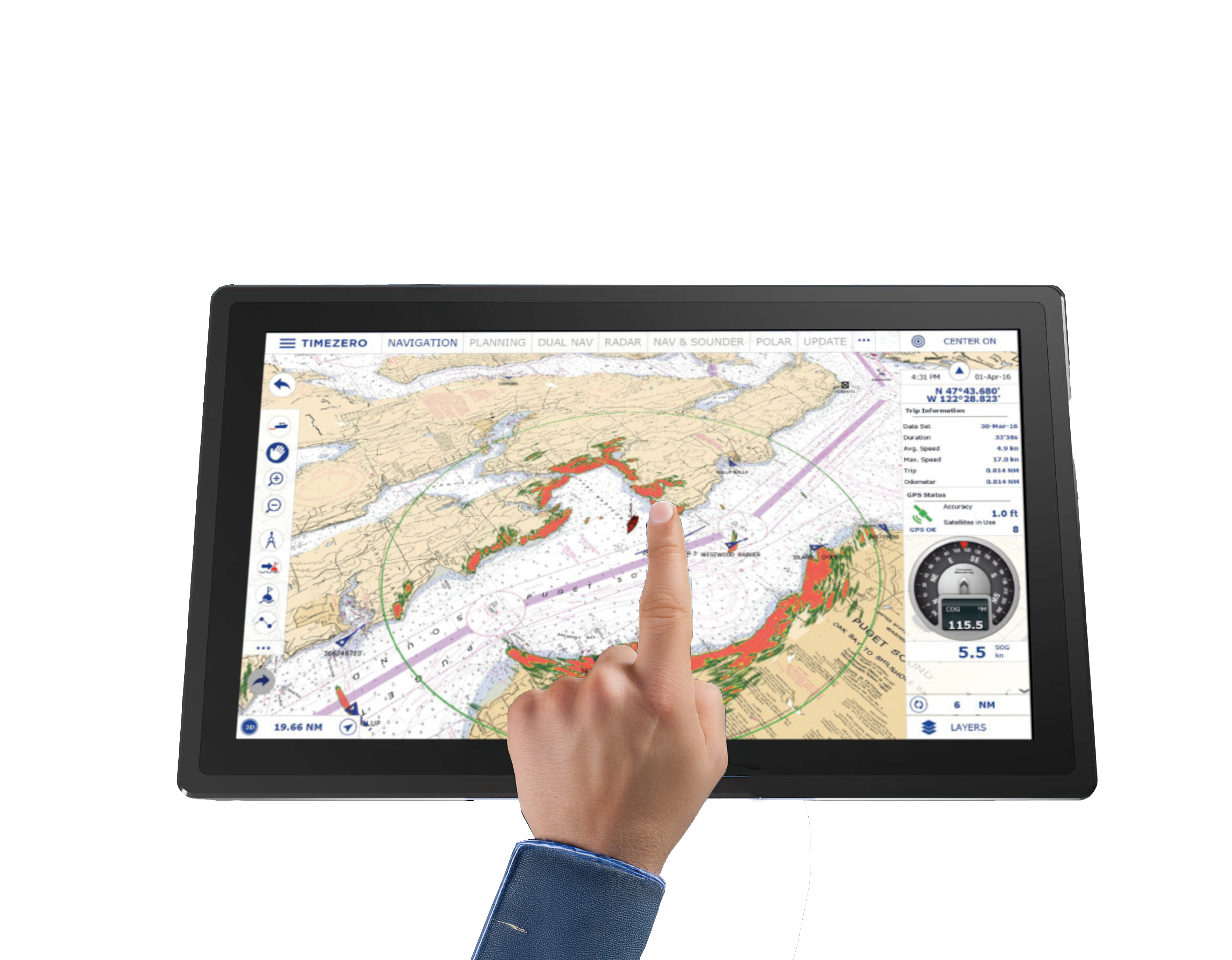

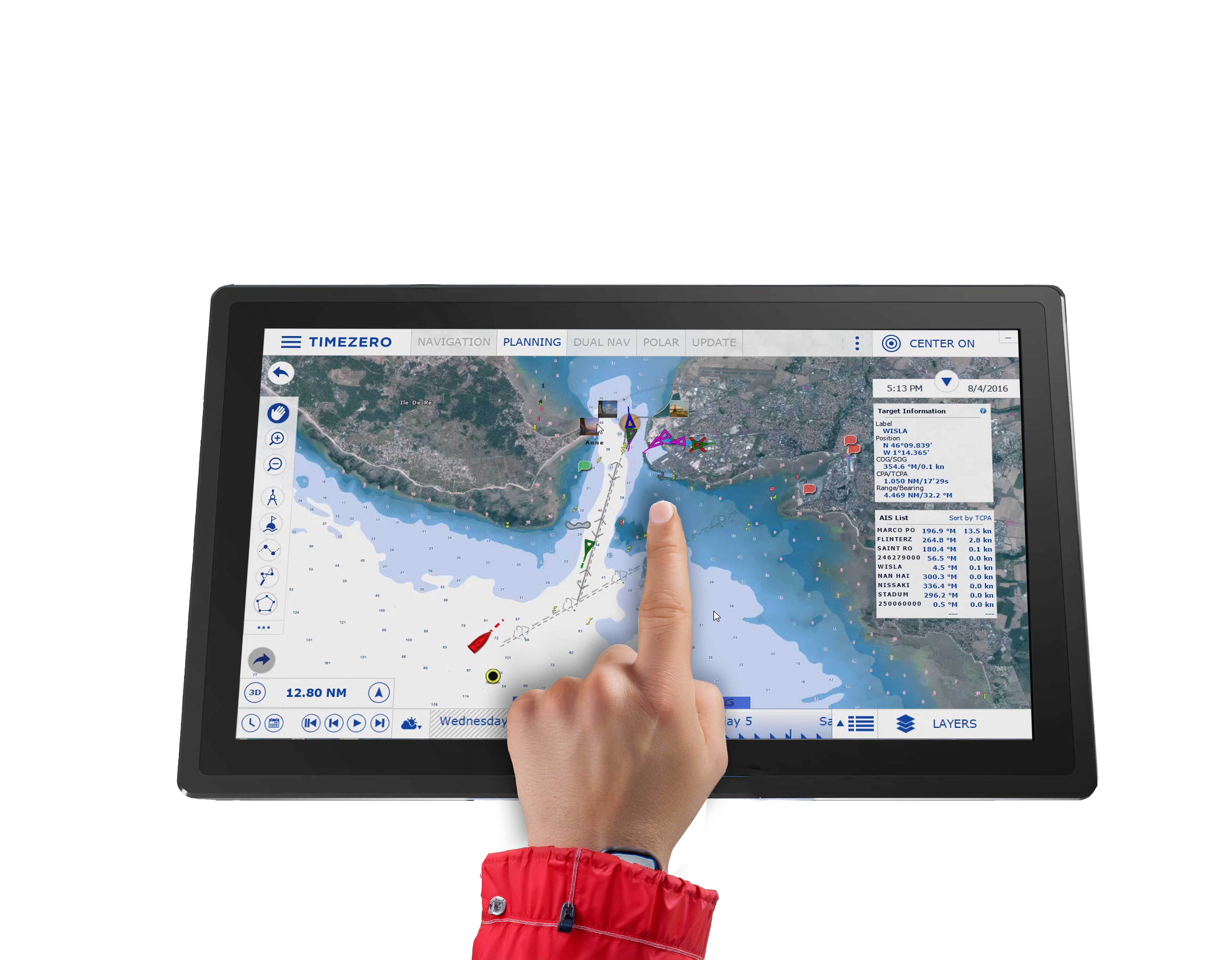

With a PCAP touchscreen, operation of marine charting software such as TimeZero, Coastal Explorer and SmarterTrack becomes easy with fast pinch in-out zooming and easy panning of charts. The S185 is the perfect monitor for our Aqua PC systems and operates direct on 12/24V DC.

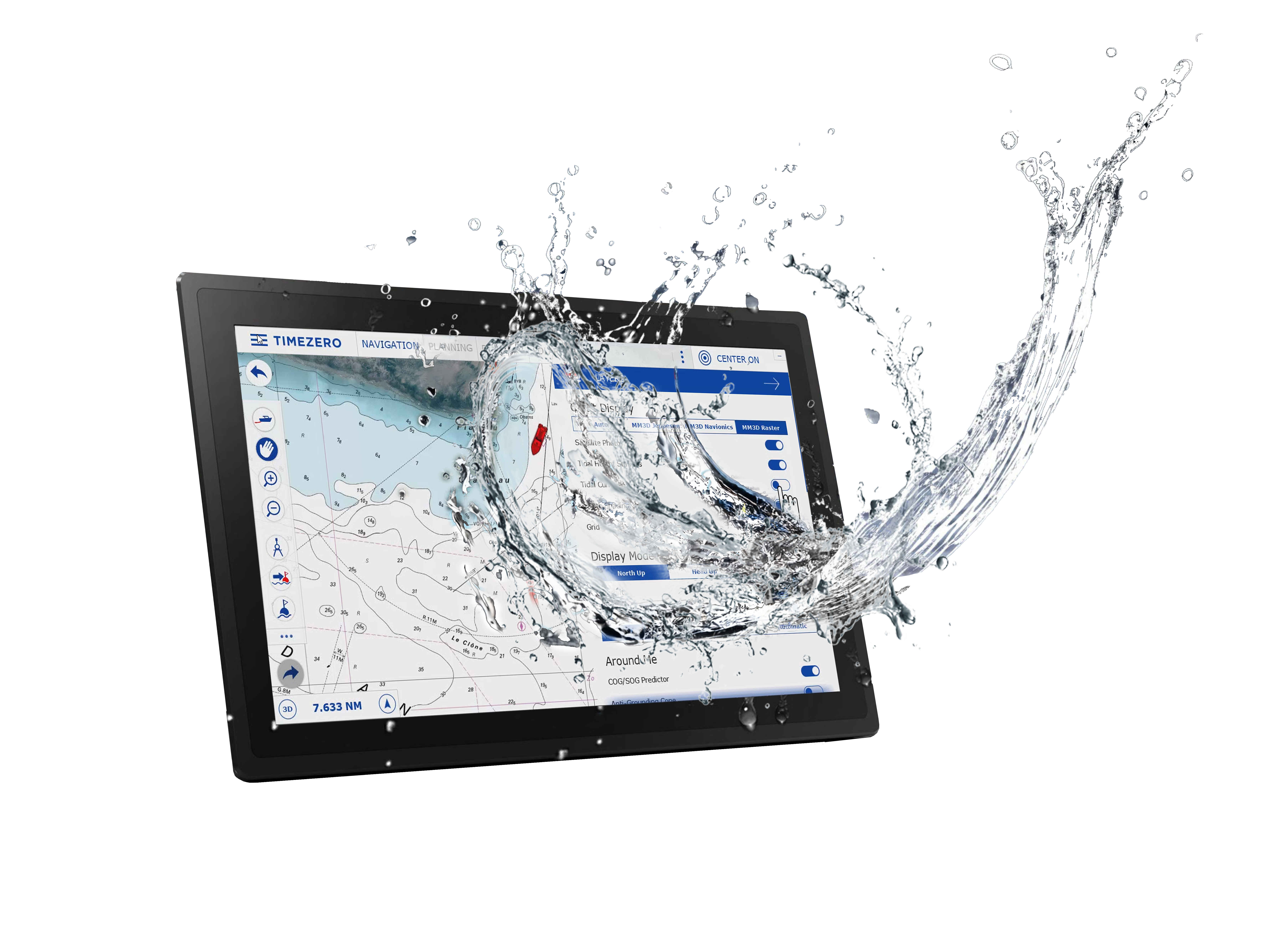

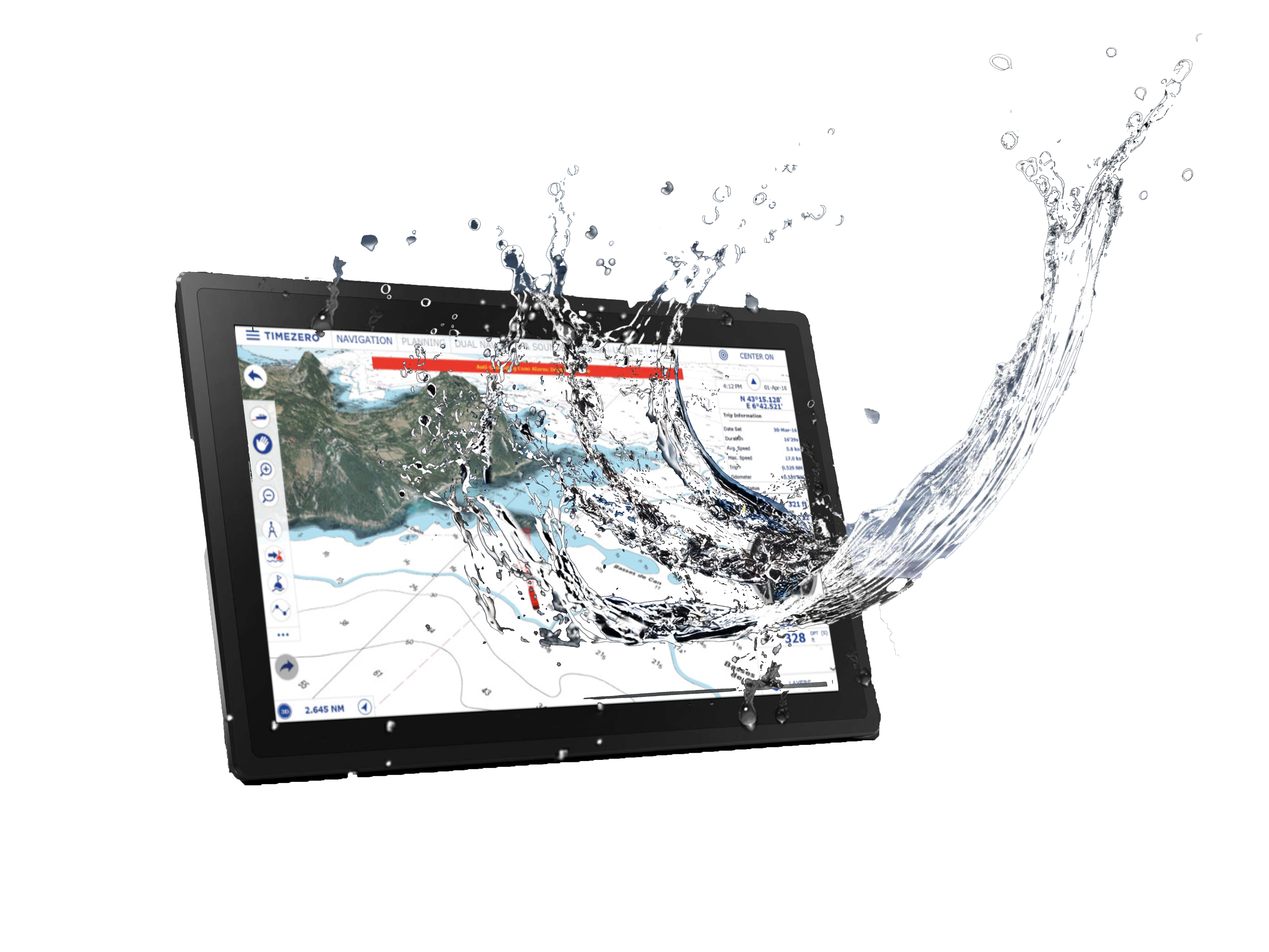

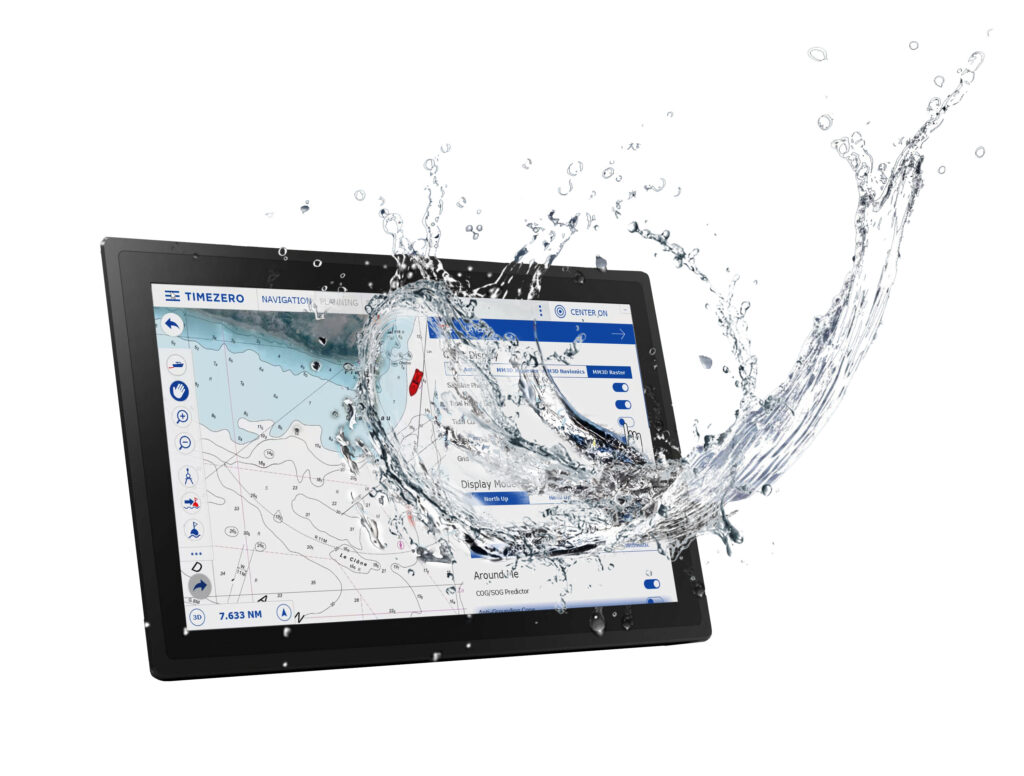

Protected Against Water
The front panel of the monitor is rated at IP65 which offers a good level of protection against water and spray when flush mounted.
- Hi brightness (1000 nit) full HD touchscreen monitor for boating
- Optically bonded for exceptional brightness
- 1920 x 1080 resolution
- 12/24v DC operation (max 30w power draw)
- PCAP touchscreen for easy navigation software control, panning and zooming even with gloved hands
- Touch fully supported on Aqua PC systems with Windows 10/11
- IP65 water-resistant from front panel when suitably flush mounted
- HDMI and VGA video inputs
- Composite video input for camera applications
- USB connection to PC for touch screen controller
- Supports portrait/landscape display options from PC
- Auto dimming sensor adjusts brightness based on lighting conditions
- Measures 475 x 295mm
- Panel cutout 460 x 280mm

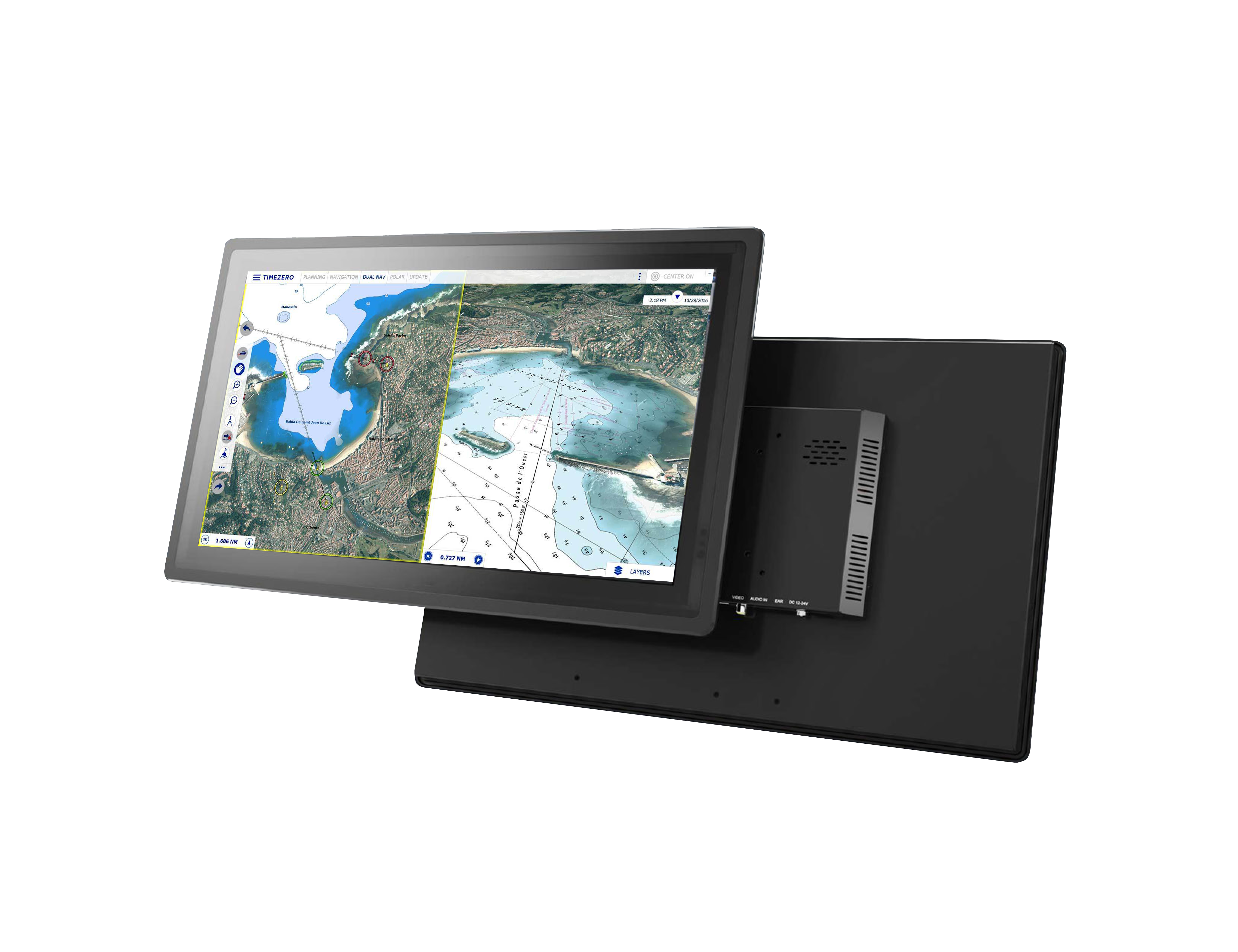

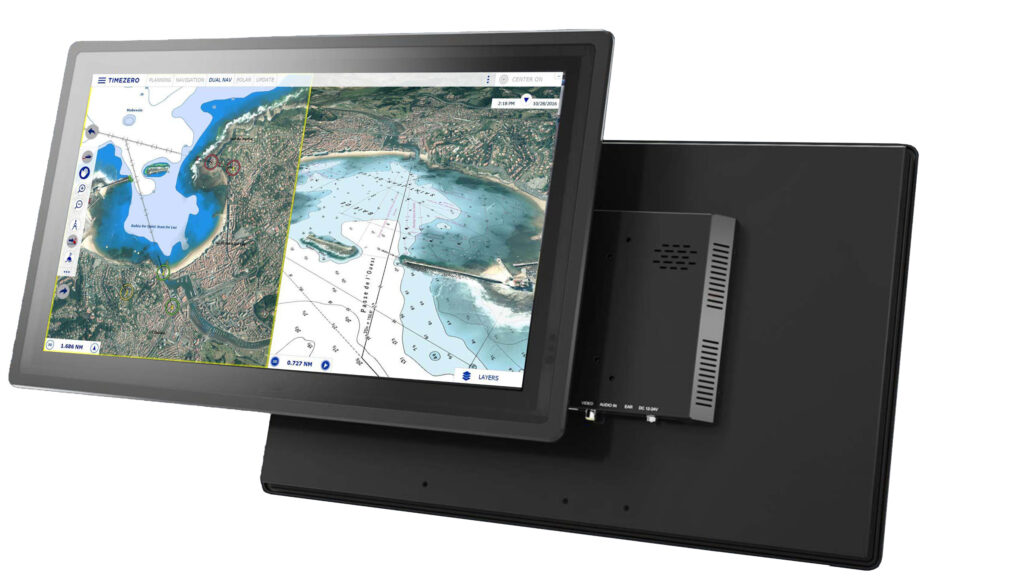

- Also compatible with standard 75 and 100mm VESA wall, dash, pole and table mounts
- Built tough with IK07 impact resistance
PC Solution with TimeZero Navigator
What’s even more exciting is our PC Navigation package comprising S185, Aqua Compact Pro PC, GPS160 QuadNav positioning sensor and TimeZero Navigator software. It offers unbelievable value and performance unmatched by any other 18.5″ touch screen nav solution. There’s full information HERE
The powerful Aqua PC processor offers ultra fast chart panning, zooming and redraw unmatched by any MFD and the brilliant new global charts from TimeZero offer vector, raster and bathy 3D views with easy updates too.
You’ll also get full NMEA 2000 integration of instruments and AIS with our NMEA certified iKonvert USB interface and optional advanced radar functionality with Furuno’s new DRS NXT radar range. Check out our podcast for a quick 15 minute chat about TimeZero on board
