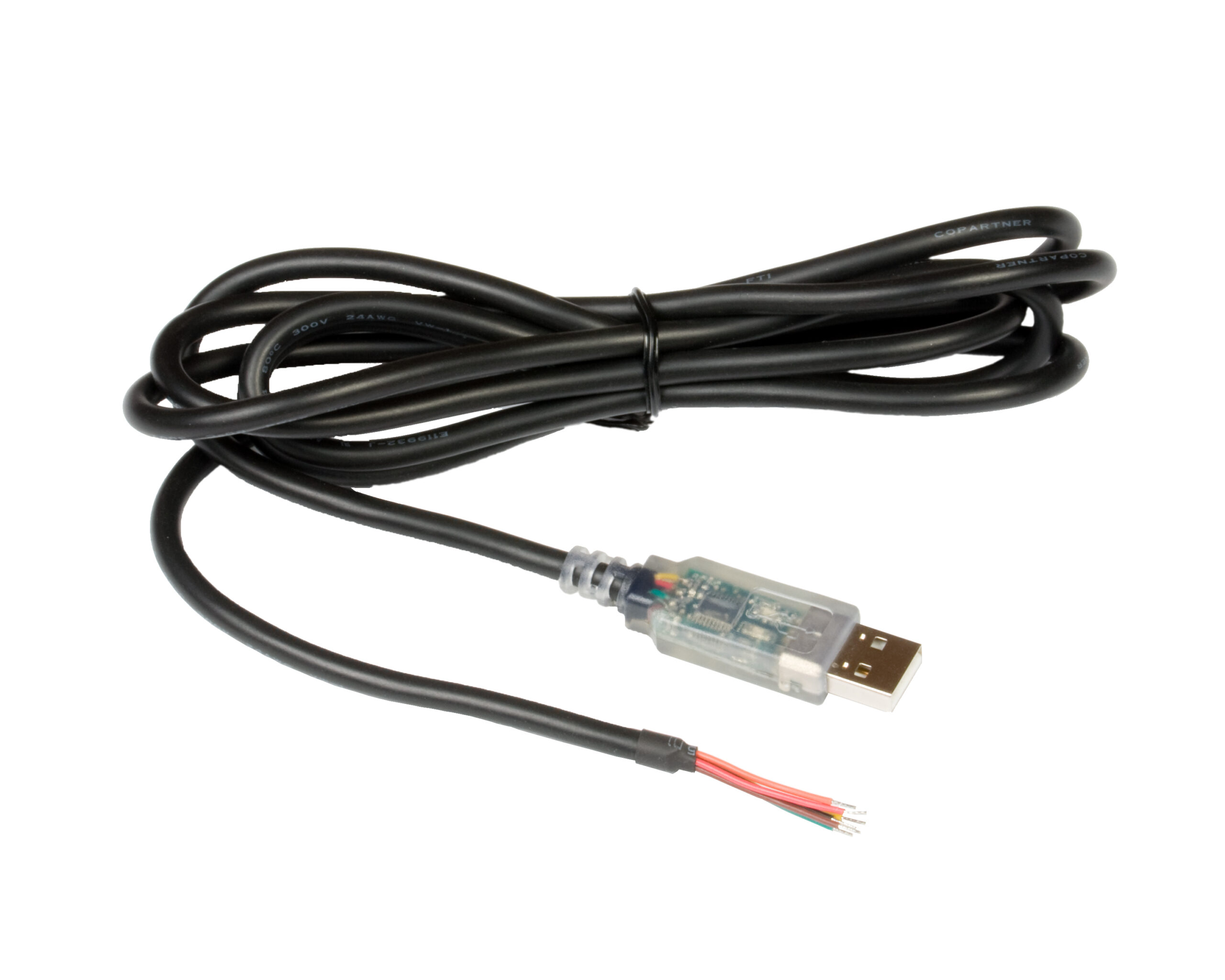

If you want a quick and easy way to get NMEA into your PC or MAC, the our USB-NMEA adaptor (ZDIGUSBNMEA) is the perfect choice. It works with 4800 and 38400 baud data so is AIS compatible too and we even include a software CD which includes drivers and some great software such as AIS SmarterTrack Lite and a NMEA viewer.
It creates a virtual com port on your PC or MAC and is compatible with leading navigation software such as Fugawi, Nobeltec, MaxSea, Maptech, SeaClear, Open CPN, SmarterTrack, SeaPro, Sea Plotter and many more. Lit’s also bi-directional. Buy it for just $59.95 from HERE now or click the Paypal Logo below
is this cable NMEA 2000 compatible? Is it bi-directional?
Our NMEA to USB adaptor cable is just for bi-directional NMEA0183 communication and is not NMEA2000 compatible. For NMEA2000 you will need an NMEA2000 USB Gateway and there are a couple of manufacturers of these units on the market.
Is it possible to use this product to upload a Wpt and a route from opencpn to a Garmin GPS plotter?
Our USB to NMEA adaptor cable is certainly capable of transfering Routes/Waypoints over NMEA0183, but it all depends upon the Software on the two devices that you are trying to transfer data between, as to whether they will successfully talk to each other. I did a quick check on the OpenCPN website and found this information in the “Connections” instructions…
“Use GarminGRMN (Host) mode for uploads. Make sure that this box is ticked, if you have a Garmin GPS. The reason for this is that Garmin units cannot accept route uploads via standard NMEA0183. This is a “design feature” of all Garmin receivers.”
I have never used this setting on the Garmin plotters, but I remember seeing it as an option on all of the Garmin units I have played with and so I would be quietly confident that this will work. Just double check that you have this setting on your Garmin unit – it will be under the NMEA Interfacing menu.
I confirm that on my GPSMAP 527 there is two serial ports
Each one can be configured as GARMIN, Std NMEA, or High speed NMEA.
I have configured the Serial port 2 as “GARMIN”
On OPENCPN have configured it as it is recommended by
“Using GarminGRMN (Host) mode for uploads”
Then I have a problem : On the GPS there is two electric connections corresponding to serial port 2 (One dark pink, one grey)
I do not understand what is the wiring I should do. Which line from your USB adapter I should connect to the dark pink and on the grey from my GPS.
Would be very kind if you could help me.
All my Best
OK you can connect our USB to NMEA converter to Port 2 of your Garmin GPSMap 527 as follows:
Our Cable – Garmin
Yellow – Gray
Orange – Violet
Black – Black
Hope this helps.
where can i download the mac drivers for this device
Here is the link to the Mac Drivers…
I’ve lost the software CD included with the cable I bought in 2012. Is it possible to download a copy please for Windows?
You can get pretty much all of the software, tools and drivers on our CD-Rom from the Downloads section of our website. Here is a link to the USB to NMEA Adaptor Cable drivers…
…please download them, extract the ZIP file and then right click on the Setup program and select “Run as administrator”.
Could I get the win10 drivers by download also. My laptop doesn’t have a CD-drive any more. Thanks!
We are finding more and more of our customers are upgrading to the latest slim line laptops and tablets that don’t have a CD/DVD drive. With this in mind and keen to do our bit for the environment, we have now stopped shipping CDs with our products and created an “On-Line CD” which is detailed in this article….https://digitalyacht.net/2020/01/08/cd-dead-long-live-online-cd/
I am having trouble connecting to an SLR200G AIS receiver. I have orange connected to NMEA out + and black to output -. The usb connector is flashing green but there is gibberish coming across.
You need to connect the Yellow + and Brown – of your AIS receiver to the NMEA out + and -.
Hi, I have a NMEA-USB adapter (ZDIGUSBNMEA) that when I connect to my PC (after installing drivers from online cd) causes the PC mouse pointer and mouse clicks to go crazy, randomly moving around the screen and clicking on things. I had the same problem on my last laptop and put it down to the laptop being a bit old, but now I am trying it with a new laptop running the latest windows 10. The adaptor is connected to an AIT 5000 as follows…. Adaptor black to AIT 5000 Violet 7 adaptor yellow to AIT 5000 pink. Have also tried brown instead of violet on the AIT 5000 to adaptor black. If I connect the AIT 5000’s USB to the laptop, everything works perfectly…. but I understand that connection is only recommended for setting up the AIT 5000? Any suggestion on how I can use the adaptor without the mouse pointer / clicks going crazy would be appreciated.
Please refer to this article about the “crazy mouse” syndrome!
